54598142 – 4′ VersaStrip Light Two Pack, DLC





Model #: 54598142
Part #: ST-4-55-840-MV-D

The only 8′ Strip light that ships in a 4′ carton!

The VersaStrip light consists of two 4′ 5,694 lumen strips that can be installed in a wide array of configurations:

• Single 4′ Strip: As a single 4′ strip it can provide targeted illumination for a workspace or high traffic area.
• 8′ Strip: With the included continuous row bracket each 4′ strip can be combined into an 8′ long strip, you can join up to (10) 4′ strips together to make a single 40′ run with one power connection.

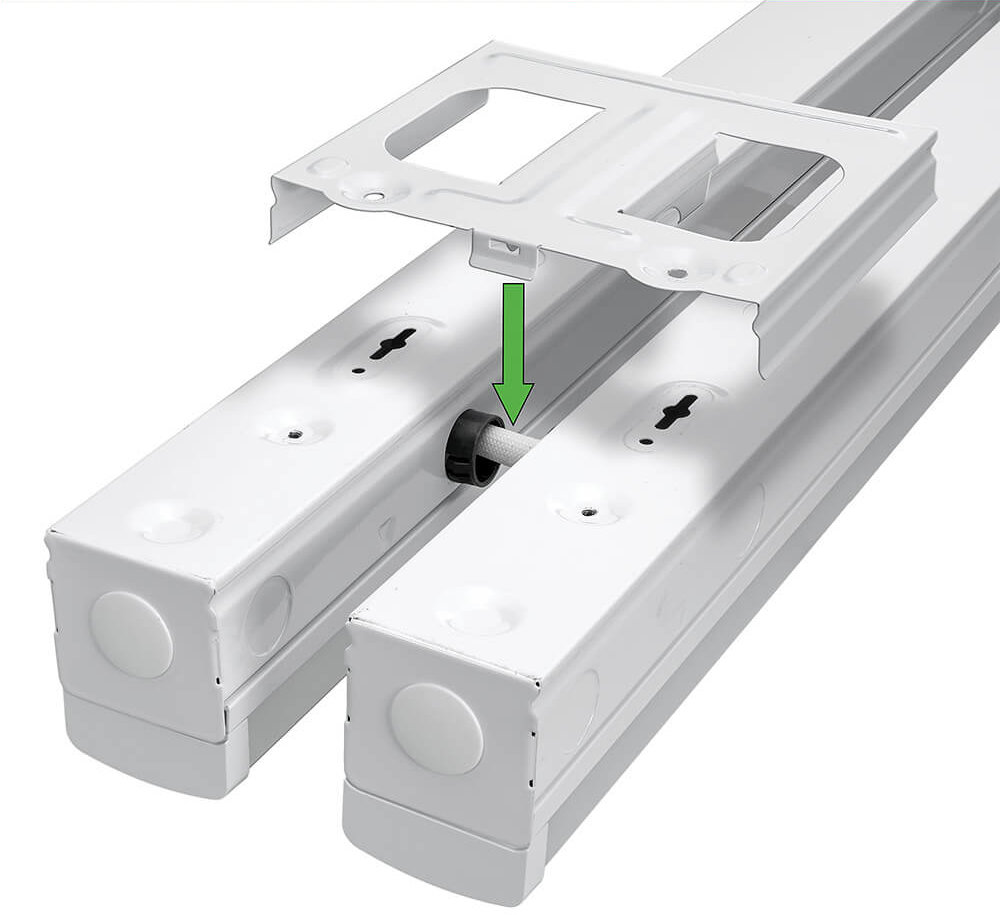

• Low/High Bay:  Using the included parallel mounting brackets, the VersaStrip is a powerful low/high bay solution.
• Grid/Pattern Installation: With the optional angle brackets the VersaStrip can be used for nearly any fixture layout required.

ETi Advantage:

• Optional motion sensors available
• Future proofed with replaceable light engine and driver
• Continuous Row and Parallel mounting brackets included
• Optional brackets include “T”, “L”, Cross Link”, and adjustable angle
• 0-10 Volt Dimmable

Features and Specifications:

• 2 x 50.1w 4′ Strips, 11,388 Total Lumens
• 120-277V
• DLC Approved
• UL Damp rated
• Projected L70 @ 224,000 hours (per IES TM21)
• 5 year limited warranty
• Product dimensions – 48 x 4.2 x 2.5 in.

Compatible Accessories:

90600121 – Multi-Volt Occupancy Sensor with daylight sensor, external, Up to 19′ mounting height, detection angle 30°-150°, Knockout or link connection
90600647 – VersaStrip Motion Sensor for Parallel Configuration Only
70112202 – 25W Square Emergency LED Driver/BBU (GEN 2)
70114401 – 40W Round Emergency LED Driver/BBU (GEN 2)
90600648 – L Linking Bracket
90600649 – T Linking Bracket
90600738 – Parallel Linking Bracket 2 Fixtures
90600650 – Parallel Linking Bracket 3 Fixtures
90600651 – Cross Linking Bracket
90600652 – Adjustable Linking Bracket
90600737 – Continuous Linking Bracket
90600739 – Plastic Cover
