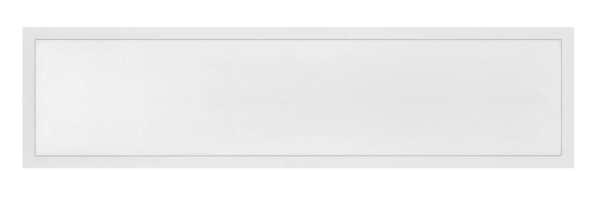

1′ x 4′ ECO16 Lumen Boost® and Color Preference® Flat Panel, 1 Pack

7% DN Price: $43.55
5% DN Price: $41.35

Part #: E16FP-14-LB4-8-CP4-MV-LVD-1PK
Model #: 64214101

Lumens/Watts:
2500 Lumens / 20 Watts
3125 Lumens / 25 Watts
3750 Lumens / 30 Watts
4375 Lumens / 35 Watts
CCT: 3000K/3500K/4000K/5000K
Input Voltage: 120-277V

SKU: 64214101 Category: Tags: , , , , ,

Part #: E16FP-14-LB4-8-CP4-MV-LVD-1PK

Model #: 64214101

KEY FEATURES
Each back-lit luminaire is ultra-thin with an overall height of 1.38” to fit shallow plenums and are IC rated for direct contact with insulation.

CCT & Light Quality
• 4 Selectable CCTs (3000K, 3500K, 4000K, 5000K)
• 80+ CRI (up to 86) with high R13 values
Light Output & Efficacy
• 4 Lumen Options: 2500/3125/3750/4375 lumens
• Efficacy Rating Range @4000K: 1X4: 133 – 144.4
• 87.8% lumen maintenance @ 54,000 hours and projected L70 @ 149,000 hours.
Dimming, Voltage, Controls
• Universal voltage (120–277V, 50/60Hz)
• 1–10V dimming to 10%
• BBU & OC Sensor Options Available on 2-PKs

Available Accessories:
70317103 – ECO16 1×4 Flat Panel Surface Mount Kit (White)
70317201 – 2-Cable Suspension Mount Kit (max length 3’-0”) for 2×2 & 1×4 panels
70319203 – ECO16 1×4 Flat Panel Recessed Drywall Mount Kit (White), 38mm

SPECIFICATIONS

Wattage

20W/25W/30W/35W

Lumen Output

2500/3125/3750/4375LM

Input Voltage

120-277

CCT (K)

3000K, 3500K, 4000K, 5000K

CRI

80

DLC

Premium
