564111120 – 15″ Decorative Orbit Flushmount

Model #: 564111120
Part #: FMNL-15IN-1600LM-8-3CP-SV-TD

Watts: 22.1
Lumens: 1684
CCT: 3000K/4000K/5000K
Input Voltage: 120V

Model #: 564111120
Part #:
FMNL-15IN-1600LM-8-3CP-SV-TD

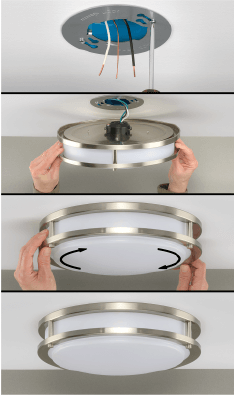

The 15” Decorative Orbit Flushmounts are an easy-to-install modern solution for any location in home or office. Mounts quickly into an existing junction box using the included TwistFit mounting bracket. The TwistFit bracket installs in less than 2 minutes and ensures a tight seal that won’t allow bugs or dust to enter. Additionally, the Decorative Orbit Flushmount does not need the lens removed to install, simply twist the fixture into place.

Our Decorative Orbit Series is ENERGY STAR® rated and delivers 1,684 lumens of extremely uniform ambient illumination in three CCT Color Preference® settings (3000K, 4000K & 5000K). This fixture is compatible with a wide range of TRIAC dimmers and qualifies in UL Damp Locations. The Decorative Orbit Flushmount series provides long-lasting maintenance free operation thanks to its reported 89.0% lumen maintenance at 60,000 hours and projected L70 at 180,000 hours. Suitable for use in clothes closets and closet storage spaces when installed in accordance with the NEC 410.16 (A)(3) and 410.16 (C)(5) spacing requirements. Ideal commercial and residential applications include, but are not limited to kitchens, pantries, bedrooms, bathrooms, closets, stairways, storage rooms, multi-family, general hallways and corridors and more.

Features and Specifications:

  • 22.1W @ 1,684 Lumens
  • 120V drivers with TRIAC dimming
  • UL Damp rated
  • Reported L75/60,000, Projected L70 @ 180,000 hours
  • 80+ CRI standard for true accurate color rendering
  • TwistFit Mounting System for quick and easy installation
  • Field selectable 3-CCT Color Preference® switch (3000K, 4000K, 5000K)
  • Closet rated when installed in accordance with the NEC 410.16 (A)(3) and 410.16 (C)(5) spacing requirements
  • 5 Year limited warranty

Compatible Accessories:
70112202 – 25W Square Emergency LED Driver/BBU (GEN 2)
70114401 – 40W Round Emergency LED Driver/BBU (GEN 2)



SPECIFICATIONS

Lumen Output

1684

Wattage

22.1

Input Voltage

120

CCT (K)

3000/4000/5000

CRI

80
