56578111 – SMD6 Surface Mount Disk, 3000K with TwistFit Mounting System

7.5in Disk Light with TwistFit Mounting System

Lumens: 1000
Watts: 14
CCT: 3000K
Input Voltage: 120V
Wet Rated
Triac Dimmable

Part #: FMDL-7.5IN-1000LM-8-30K-SV-TD
Model #: 56578111

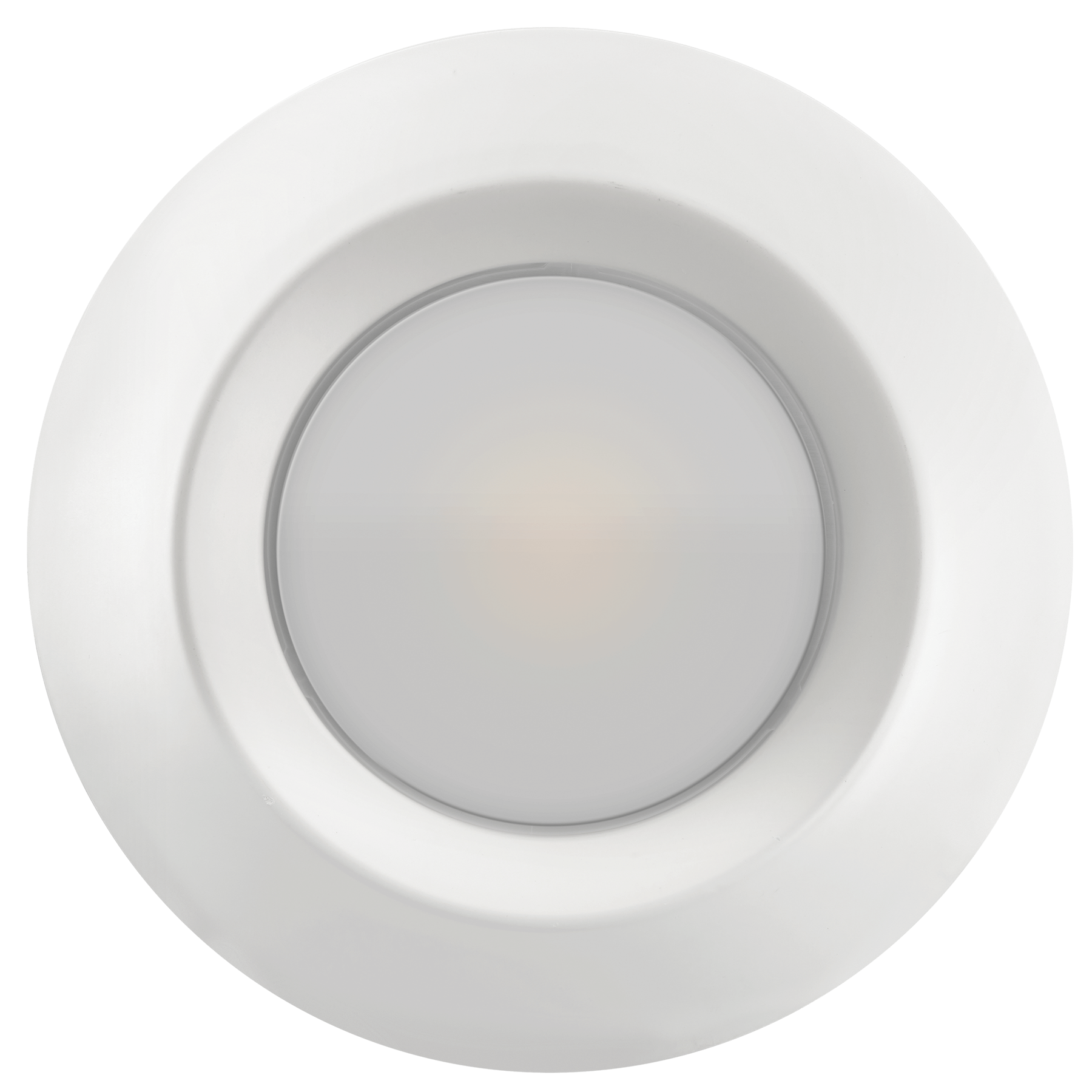

SMD6 Surface Mount Disk Light with TwistFit Mounting System
New Construction J-Box Installation or retrofit into 5″ or 6″ recessed can (with Torsion Springs & E26 Adapter Accessory Kit)

Part #: FMDL-7.5IN-1000LM-8-30K-SV-TD
Model #: 56578111

The SMD6 Surface Mount Downlight is an easy-to-install “down light” solution for any location in home or office. Mounts quickly into an existing junction box using the included TwistFit mounting bracket. The SMD6 can also retrofit into many existing 5″ and 6″ cans with Torsion Springs & E26 Adapter Accessory Kit (sold separately).  This 7.5″ diameter fixture duplicates the appearance of a traditional 6″ recessed downlight. ETi Advantage:

  • Value Priced lighting solution for both new construction and downlight retrofits
  • Bright, efficient 1000 Lumen light output
  • 3000K CCT
  • TRIAC Dimmable
  • Meets NECA 410.16 requirement
  • IC Rated for direct contact with ceiling insulation
  • Certified airtight per ASTM E283.04

Features and Specifications:

  • 14w, 1000 Lumens
  • 120V
  • 80 CRI
  • UL Wet rated
  • L70 > 50,000 hours
  • 5 year limited warranty

Compatible Accessories:
70112202 – 25w Emergency LED Driver with Lithium Ion Battery
95657811101 – Torsion Springs & E26 Adapter Kit
90600755 – Oil Rubbed Bronze Trim
90600754 – Black Trim
90600756 – Brushed Nickel Trim

Compatible Dimmers: LUTRON: DVCL-153, CTCL-153P, TGCL-153P, MACL-153M, PD-6WCL, LECL-153, SCL-153P, NTCL-250, GT-150 LEVITON: 6674, 6672, IPL06-10Z, DSL06-1LZ, TSL06, RDL06 EATON: SAL06P2 COOPER: DLC03P, SUT7, TAL06P2
