56578311 – SMD6 Surface Mount Disk, High Lumen, 3CCT Color Preference® with TwistFit Mounting System

Model #: 56578311
Part #: FMDL-7.5IN-1500LM-8-CP3-SV-TD

Lumens: 1500
Watts: 20
3 CCT: 3000K / 4000K / 5000K
Input Voltage: 120V
Wet Rated
Triac Dimmable

Model #: 56578311
Part #:
FMDL-7.5IN-1500LM-8-CP3-SV-TD

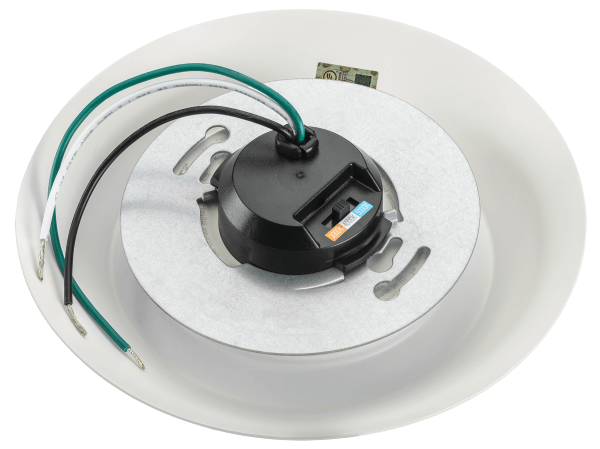

The SMD6 Surface Mount Downlight is an easy-to-install “down light” solution for any location in home or office. Mounts quickly into an existing junction box using the included TwistFit mounting bracket. The SMD6 can also retrofit into many existing 5″ and 6″ cans with Torsion Springs & E26 Adapter Accessory Kit (sold separately).  This 7.5″ diameter fixture duplicates the appearance of a traditional 6″ recessed downlight.

Features and Specifications:

  • 19.3W at 1,592 delivered lumens
  • 120V drivers TRIAC dimming (down to 10%) capability
  • 80+ CRI standard for true accurate color rendering & visual performance
  • UL Wet rated
  • 5 year limited warranty
  • 3000K, 4000K, 5000K CCT
  • ENERGY STAR® rated to meet strict efficiency, quality & lifetime criteria
  • Meets NECA 410.16 requirement
  • IC Rated for direct contact with ceiling insulation

Compatible Accessories:
70112202 – 25W Square Emergency LED Driver/BBU (GEN 2)

70114402-2  – 40W Square Emergency LED Driver/BBU (GEN 3)
70114401 – 40W Round Emergency LED Driver/BBU (GEN 2)
70114401-2  – 40W Round Emergency LED Driver/BBU (GEN 3)

Compatible Dimmers:
LUTRON:
DVCL-153, CTCL-153P, TGCL-153P, MACL-153M, PD-6WCL, LECL-153, SCL-153P, NTCL-250, GT-150 LEVITON: 6674, 6672, IPL06-10Z, DSL06-1LZ, TSL06, RDL06 EATON: SAL06P2 COOPER: DLC03P, SUT7, TAL06P2

SPECIFICATIONS

Lumen Output

1592

Wattage

19.3

Input Voltage

120

CCT (K)

3000/4000/5000

CRI

80
