56578411 – SMD6 Surface Mount Disk, High Lumen, 3000K with TwistFit Mounting System

Model #: 56578411
Part #: FMDL-7.5IN-1500LM-8-30K-SV-TD

Lumens: 1500
Watts: 20
CCT: 3000K
Input Voltage: 120V
Wet Rated
Triac Dimmable

Model #: 56578411
Part #:
FMDL-7.5IN-1500LM-8-30K-SV-TD

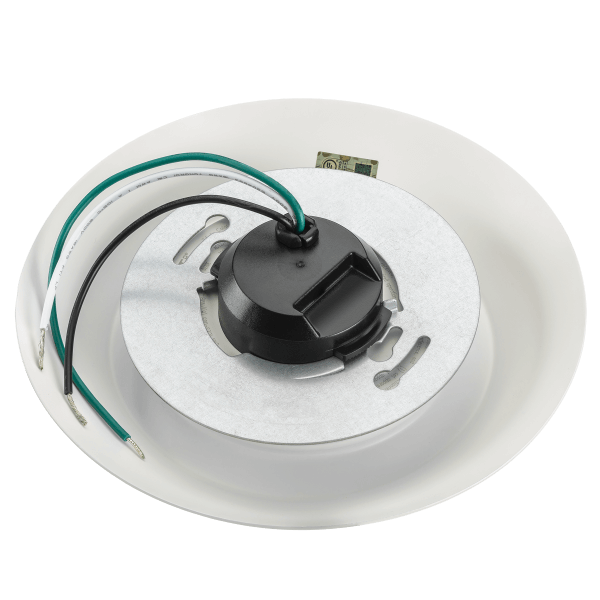

The SMD6 Surface Mount Disk is an easy-to-install “down light” solution for any location in home or office. Mounts quickly into an existing junction box using the included TwistFit mounting bracket. The SMD6 can also retrofit into many existing 5″ and 6″ cans with Torsion Springs & E26 Adapter Accessory Kit (sold separately).  This 7.5″ diameter fixture duplicates the appearance of a traditional 6″ recessed downlight.

Features and Specifications:

  • 19.7W at 1,536 delivered lumens
  • 120V drivers TRIAC dimming (down to 10%) capability
  • 80+ CRI standard for true accurate color rendering & visual performance
  • UL Wet rated
  • 5 year limited warranty
  • 3000K CCT
  • ENERGY STAR® rated to meet strict efficiency, quality & lifetime criteria
  • Meets NECA 410.16 requirement
  • IC Rated for direct contact with ceiling insulation

Compatible Accessories:
95657811101 – Torsion Springs & E26 Adapter Kit
90600755 – Oil Rubbed Bronze Trim
90600754 – Black Trim
90600756 – Brushed Nickel Trim
70112202 – 25W Square Emergency LED Driver/BBU
70114402 – 40W Square Emergency LED Driver/BBU (G2)
70114402-2 – 40W Square Emergency LED Driver/BBU (G3)

Compatible Dimmers:
LUTRON:
DVCL-153, CTCL-153P, TGCL-153P, MACL-153M, PD-6WCL, LECL-153, SCL-153P, NTCL-250, GT-150 LEVITON: 6674, 6672, IPL06-10Z, DSL06-1LZ, TSL06, RDL06 EATON: SAL06P2 COOPER: DLC03P, SUT7, TAL06P2

SPECIFICATIONS

Lumen Output

1536

Wattage

19.7

Input Voltage

120

CCT (K)

3000

CRI

80
