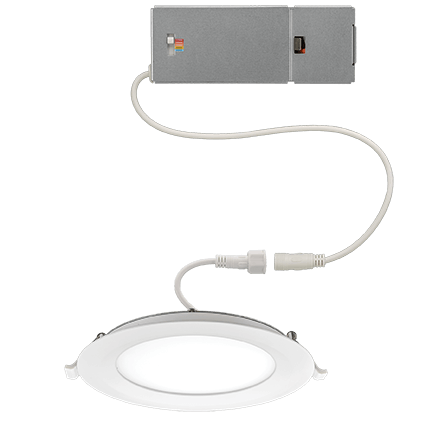

53807103 – 6” LowPro Canless Direct Mount Downlight Indoor-Outdoor 5-CCT Color Preference®

6” LowPro Canless Direct Mount Downlight Indoor-Outdoor 5-CCT Color Preference®

Watts: 14W
Lumens: 1,142
CCT: 2700K/3000K/3500K/4000K/5000K
Input Voltage: 120V
Part #: DLLP-6IN-900LM-9-5CP-TD
Model #: 53807103

SKU: 53807103 Category: Tags: , , ,

6” LowPro Canless Direct Mount Downlight Indoor-Outdoor 5-CCT Color Preference®

Part #: DLLP-6IN-900LM-9-5CP-TD
Model #: 53807103

ETi SSL’s DLLP LowPro family of direct mount, ultra-low profile, wet location downlights are designed for use in both indoor and outdoor residential and light commercial applications. Our products are engineered using the latest innovative LED technologies to provide the perfect mix of modern design, performance, world class quality and reliability. All at a superior value to the designer, specifier, contractor and end-user.

The DLLP family is an extremely versatile product series designed for use in many retrofit, remodel or new construction applications. Installs quickly and directly into a drywall or drop ceiling without the need and expense of a separate recessed downlight housing or secondary junction box. Includes certifications to both ENERGY STAR® and the California Appliance Efficiency Database under JA8 that can be used to comply with California Title 24 Part 6 High Efficacy LED light source requirements.

ETi’s patented integral ColorPreference® field selectable 5-CCT (2700K, 3000K, 3500K, 4000K & 5000K) comes standard in the DLLP family. A simple toggle switch on the remote driver housing/wiring box sets the desired CCT in the field. Helps to reduce SKU complexity while providing added design flexibility. Easily enhance user visual experiences for many tasks or applications that can require multiple color temperatures.

Key Product Features:

  • 6” round delivers a minimum 1,142 lumens @  13.8W, 2700K, 120V
  • Direct mount w/ spring clips – no separate recessed housing or j-box needed
  • Ultra-low profile design with a fixture height of 1.1” ideal for shallow applications
  • Type IC Rated for direct contact with insulation if applicable
  • Color Preference® field selectable 5-CCT, 90+CRI (2700K, 3000K, 3500K, 4000K & 5000K)
  • Air Tight Certified per ASTM E283 helps HVAC energy efficiency & cost savings
  • Wet location listed w/ IP65 cable connectors (showers, protected ceilings, etc.)
  • Dimmable to 10% with many common 120V TRIAC & ELV dimmers
  • California JA8 certified & can be used to comply with Title 24 requirements
  • ENERGY STAR® rated to meet strict efficiency, quality & lifetime criteria
  • 70.8% lumen maintenance at 54,000 hours (L71/54,000) per IES TM-21.
  • ETi SSL’s 5-year standard warranty


Compatible Accessories:

70112202 – 25w Emergency LED Driver with Lithium Ion Battery
90600736 – Oil Rubbed Bronze Trim Rings 6 inch LowPro Downlight
90600748 – Brushed Nickel Trim Rings 6 inch LowPro Downlight
90600749 – Black Trim Rings 6 inch LowPro Downlight
906007760 – 12’ Extension Cord
906007770 – 20’ Extension Cord
70313101 – Rough-in Guide Plate – coming soon

SPECIFICATIONS

Wattage

14

Lumen Output

1,142

Input Voltage

120

Dimming

Triac

CCT (K)

2700K/3000K/3500K/4000K/5000K

CRI

90

ENERGY STAR

Yes
