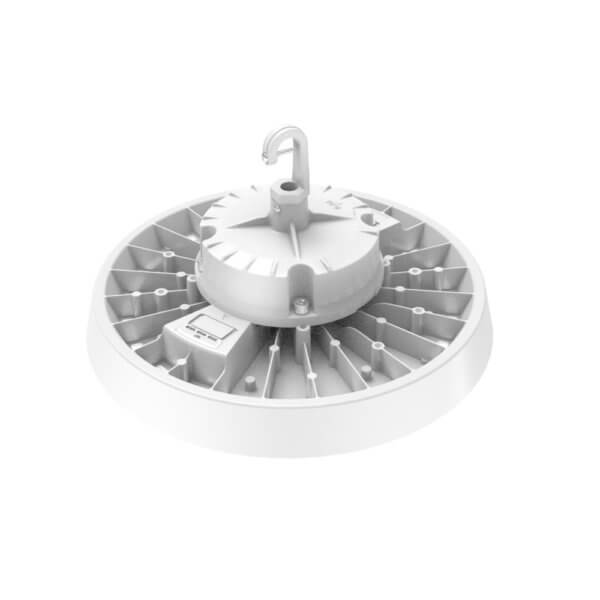

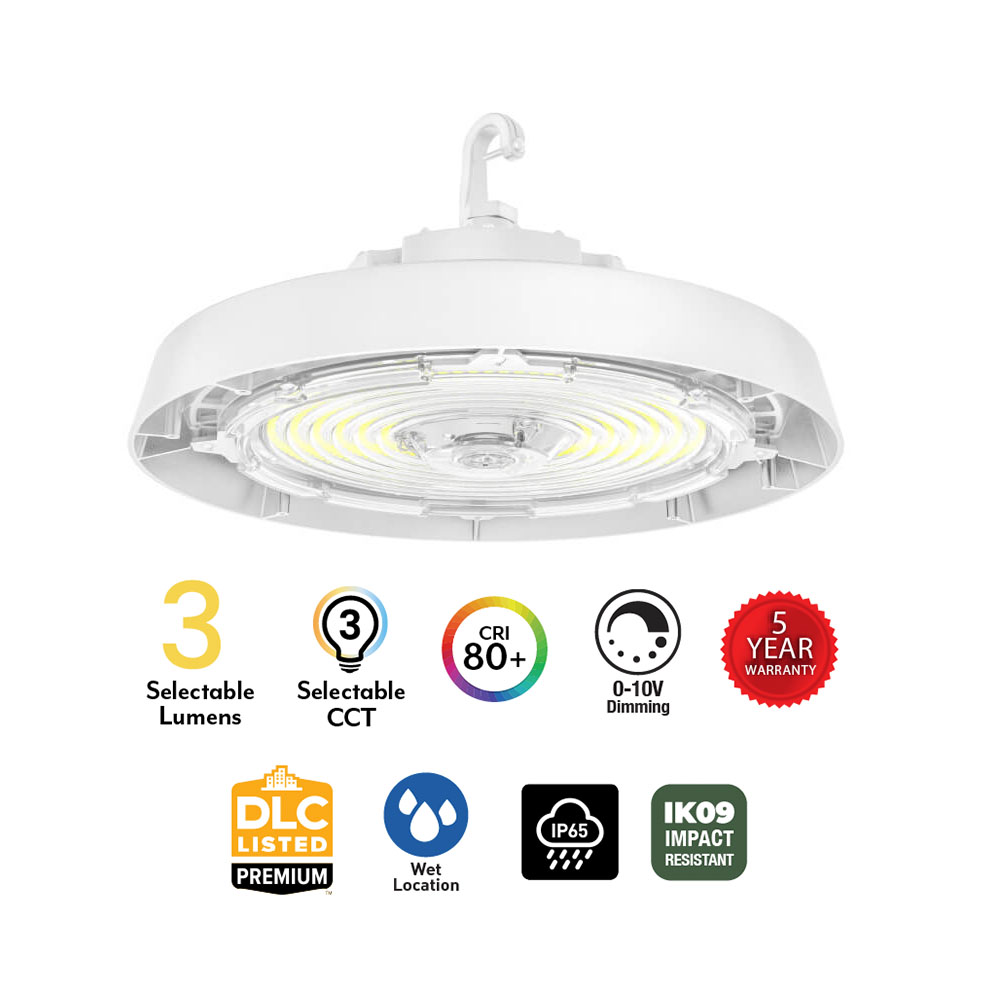

ERHB | Essential Round High Bay, Lumen Package 22L, White

Part #: ERHB-22L-LB3-8-CP3-MV-LVD-WH

Order #: 63815201

KEY FEATURES
ETi SSL’s impact-resistant Essential Round High Bays are durable and flexible with 3 Selectable Wattages and CCTs, multiple lenses, reflectors, and mounting accessories to help achieve the ideal solution for each application. It also offers a sensor ready port for quick plug and play install. Equipped with 0-10V dimming, and universal 120-277 voltage, they are suitable for bay lighting, gym ceilings, industrial facilities, and more.

CCT & Light Quality
• 3 Selectable CCTs (3500K, 4000K, 5000K)
• 80+ CRI
Light Output & Efficacy
• 3 Wattage Levels:
22500 lm: 100W | 120W | 150W
Dimming, Voltage, Controls
• 1–10V dimming to 10%
• Universal voltage (120–277V)
• BBU or OC Sensor Accessories Available (order separately, field installed)
• Life projected L70 @ 54,000 hours
Construction
• Die-cast aluminum housing, 1/2″ NPT steel hook with locking screw
• Matte black or matte white finish options

Available Accessories: BBU or OC Sensor options, NOT compatible together:
70221101 – ERHB Quick Install DC Occupancy Sensor
70222101 – ERHB Remote Control Occupancy Programmer
70112201-2-KIT – Round, 25W BBU
70203101 – Round BBU handheld test remote

Optional Mounting Accessories:
70520101 – Essential Series Round High Bay, Yoke Mount, Small Size (100W, 150W), White
70524101 – Essential Series Round High Bay, Junction Box Mount
70341101 – Essential Series Round High Bay, Pendant Step Mount
70513101 – Essential Series Round High Bay, Aluminum Reflector, Small (100W-150W)
70516101 – Essential Series Round High Bay, Polycarbonate Reflector, Small (100W-150W)
70411101 – Essential Series Round High Bay, 60 Degree Lens, Small (100W-150W)
70522101 – Essential Series Round High Bay, Wire guard, Small (100W-150W)
