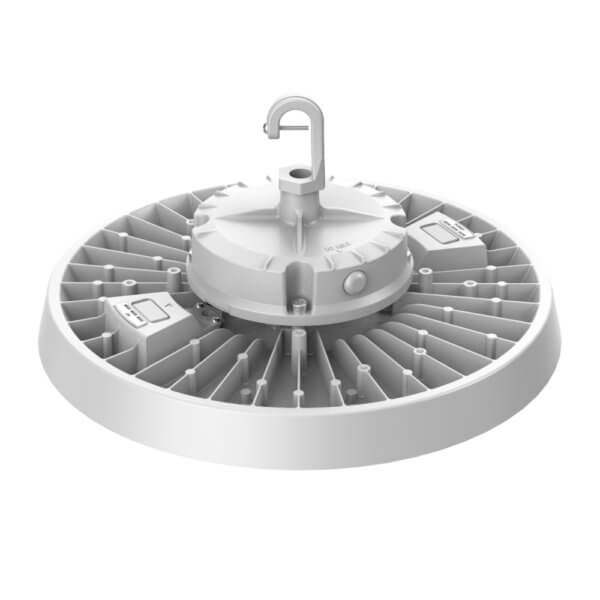

ERHB | Essential Round High Bay, Lumen Package 36L, White

7% DN Price: $104.50
5% DN Price: $98.23

Part #: ERHB-36L-LB3-8-CP3-MV-LVD-WH
Order #: 63816201

Wattage Range: 200|220|240W
Lumen Package: 36000LM
CCT: 3500K, 4000K, & 5000K
Input Voltage: 120-277V, 50/60Hz

SKU: 63816201 Category: Tags: , , ,

Part #: ERHB-36L-LB3-8-CP3-MV-LVD-WH

Order #: 63816201

KEY FEATURES
ETi SSL’s impact-resistant Essential Round High Bays are durable and flexible with 3 Selectable Wattages and CCTs, multiple lenses, reflectors, and mounting accessories to help achieve the ideal solution for each application. It also offers a sensor ready port for quick plug and play install. Equipped with 0-10V dimming, and universal 120-277 voltage, they are suitable for bay lighting, gym ceilings, industrial facilities, and more.

CCT & Light Quality
• 3 Selectable CCTs (3500K, 4000K, 5000K)
• 80+ CRI
Light Output & Efficacy
• 3 Wattage Levels:
36000 lm: 200W | 220W | 240W
Dimming, Voltage, Controls
• 1–10V dimming to 10%
• Universal voltage (120–277V)
• BBU or OC Sensor Accessories Available (order separately, field installed)
• Life projected L70 @ 54,000 hours
Construction
• Die-cast aluminum housing, 1/2″ NPT steel hook with locking screw
• Matte black or matte white finish options

Available Accessories: BBU or OC Sensor options, NOT compatible together:
70221101 – ERHB Quick Install DC Occupancy Sensor
70222101 – ERHB Remote Control Occupancy Programmer
70114401-2-KIT – Round, 40W BBU
70203101 – Round BBU handheld test remote

Optional Mounting Accessories:
70521101 – Essential Series Round High Bay, Yoke Mount, Large Size, (200W-240W), White
70524101 – Essential Series Round High Bay, Junction Box Mount
70341101 – Essential Series Round High Bay, Pendant Step Mount
70514101 – Essential Series Round High Bay, Aluminum Reflector, Large (200W-240W)
70517101 – Essential Series Round High Bay, Polycarbonate Reflector, Large (200W-240W)
70412101 – Essential Series Round High Bay, 60 Degree Lens, Large (200W-240W)
70523101 – Essential Series Round High Bay, Wire guard, Large (200W-240W)

SPECIFICATIONS

Wattage Range

200, 220, 240W

Lumen Package

36000LM

CCT (K)

3500K/4000K/5000K

Input Voltage

120-277

DLC

Premium
