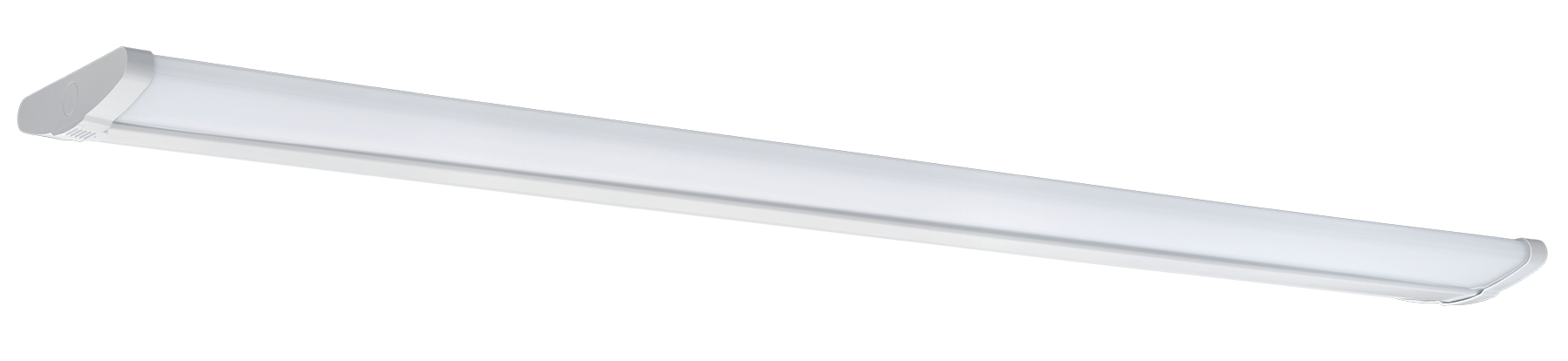

56802142 – 4′ Commercial LowPro Wrap Light

Watts: 48
Lumens: 5544
CCT: 4000K
Input Voltage: 120-277V
Model #: 56802142
Part #: WR-4FT-5500LM-8-40K-MV-LVD

SKU: 56802142 Category: Tags: , , , ,

Model #: 56802142
Part #: WR-4FT-5500LM-8-40K-MV-LVD

ETi SSL’s Commercial LowPro Wrap Light provides efficient and economical ambient illumination with a sleek and modern ultra low profile architectural design. With an installed profile height of 1.65”, this fixture is ideally suited for spaces with low floor to ceiling clearance. But it is also an excellent architectural solution for retrofitting any outdated fluorescent installations or for new construction projects looking for an excellent blend of LED performance and product design. All ETi SSL products are engineered using the latest innovative LED technologies to help provide the perfect mix of modern design, performance, world class quality and product reliability. All at a superior value to the designer, specifier, contractor and end-user.

Our Commercial LowPro Wrap series is DLC rated and delivers 5544 lumens of extremely uniform ambient 4000K illumination. Product is compatible with a wide range of 0-10V dimmers or with our field installable OC Sensor for additional control flexibility. Optional field install Emergency BBUs are also available for emergency egress. Installation is quick and easy thanks to the tool free center housing design with direct wiring access from below, with multiple knockouts for added install flexibility. Product can be thru-wired for continuous row installation up to 8-fixtures total. Fixture is rated to operate reliably from -20° C (-4° F) and in high ambient 45° C (113° F) applications. The Commercial LowPro Wrap series provide long-lasting maintenance free operation thanks to its reported 89.0% lumen maintenance @ 60,000 hours and projected L70 @ 180,000 hours. Ideal commercial and residential applications include, but are not limited to offices, retail, storage rooms, multi-family, general hallways and corridors, garages, workshops and more.

Our entire team takes great pride in our dedication to providing innovative in-stock lighting solutions that typically ship in 2-3 days with the product reliability and quality that you can always depend on from ETi SSL.

Features and Specifications:

  • 48W @ 5,544 lumens
  • 80+ CRI standard for true accurate color rendering & visual performance
  • -20° to 45° C (-4° to 113° F) high ambient temp rating for demanding applications
  • DLC qualified for energy savings & potential energy rebate eligibility
  • Standard surface mount bracket for quick & easy ceiling installation

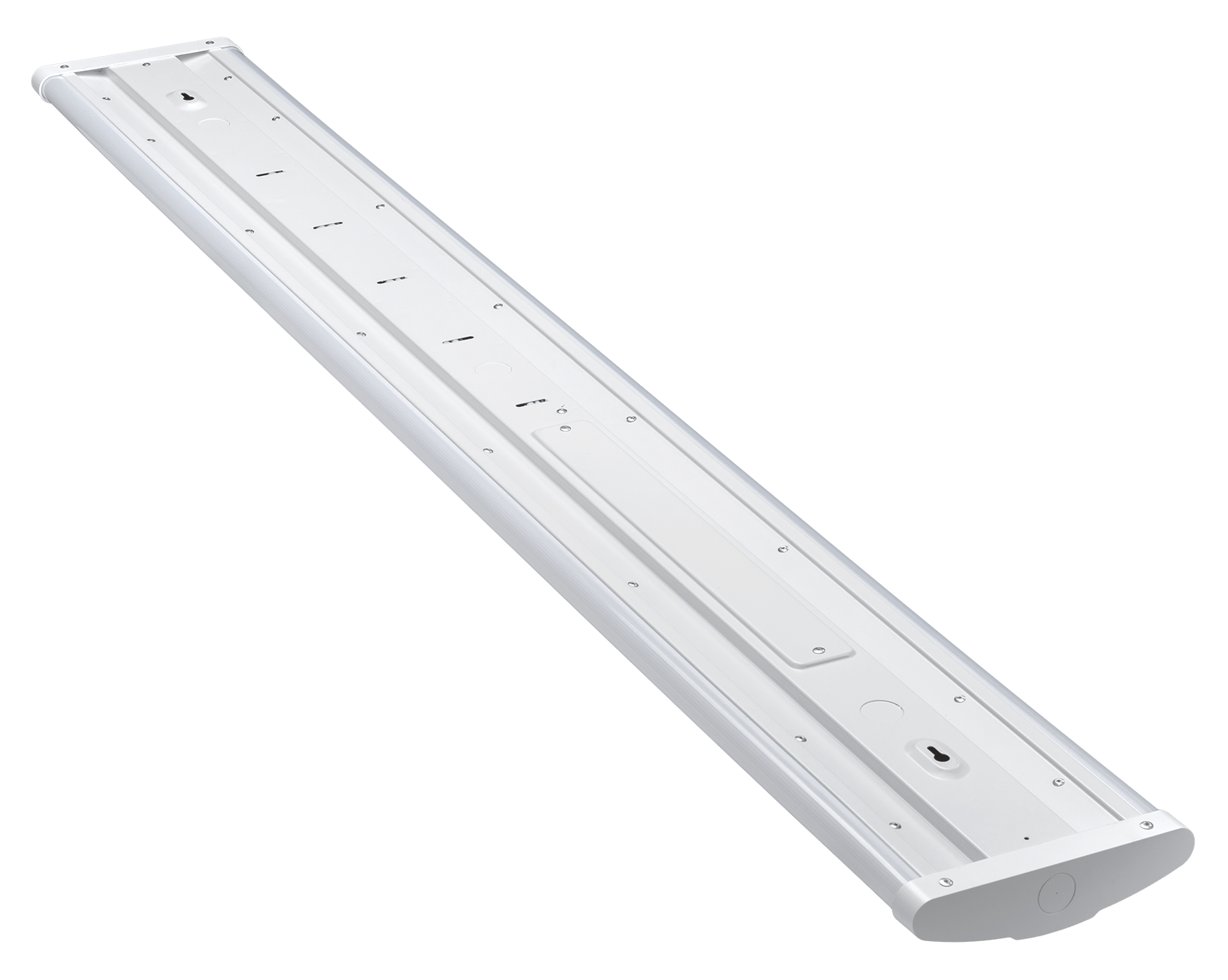

  • Removable center face panel for easier wiring
  • 120-277V drivers w/ 0-10V dimming capability
  • Row/continuous mounting allows for connection of up to 8 fixtures

Compatible Accessories:

70112202-2  – 25W Square Emergency LED Driver/BBU (GEN 3)
70114402-2  – 40W Square Emergency LED Driver/BBU (GEN 3)

70201101-2-KIT  – External Mount Step Dimming Microwave Occupancy Sensor Kit
70205101 – OC Sensor Handheld Remote Programmer

SPECIFICATIONS

Wattage

48

Lumen Output

5544

Input Voltage

120-277

Dimming

0-10v

CCT (K)

4000

CRI

80

DLC

Standard
